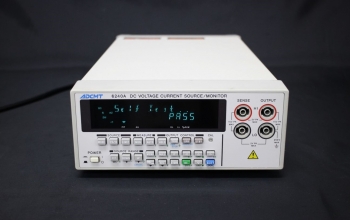

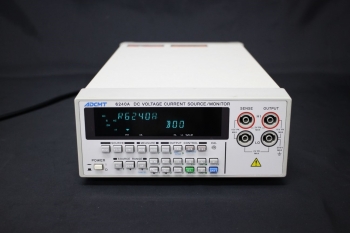

ADC 6240A 15V 4A VOLTAGE CURRENT SOURCE/MONITOR METER
JPY140,000 6stock
pow480








15.000V 4.0000A res100uV ,100nA
Voltage source
3.1000-15.000V res100uV acc0.025%
Current Source
3.1000mA-4.0000A res 100nA acc0.03%
Voltage Measure
3.19999-15.1999V res 10uV acc0.025%
Current Measure
3.19999mA-4.01999A res10nA acc0.03%
Resistance Measurement
0-7.5Mohms
Pulse Width 500us res1us
Sweep:Fixed,Liner,Random
Limit test:High/Low Suspend(Open)
Sync Test
Memory:5000 Math:Null,Compare,Max,Min,Scale,Ave,Total
Trigger:Auto,Ext
GP-IB
AC100V-240V 95VA 212W88H400D
Power Code
